Keyword | Hydraulic Breaker For 13 Ton Excavator | Similar Hydraulic Hammer | Soosan, Daemo, Hanwoo |
---|---|---|---|
Breaker Materials | High Strength Steel Q345B | Hammer Chisel Materials | 40Cr/42Crmo |
Color | Blue, Yellow, Red, Green, Orange | Loading Port | China Ports |
Highlight | 45mm backhoe rock breaker,construction backhoe rock breaker |
backhoe rock breaker Backhoe Loader Hydraulic Hammer hydraulic rock breaker parts

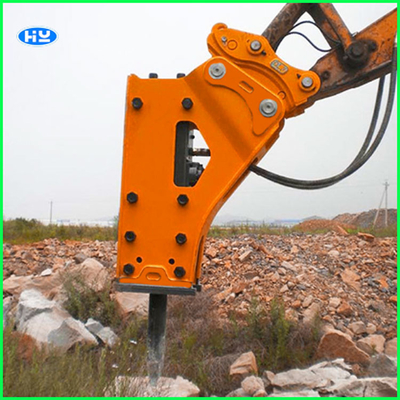

backhoe rock breaker product description:
A backhoe rock breaker, also known as a backhoe hydraulic breaker or hydraulic hammer, is a specialized attachment designed to be mounted on a backhoe loader for breaking and demolishing hard materials such as rocks, concrete, asphalt, and pavement. It is a powerful tool used in construction, mining, quarrying, and demolition applications.
The backhoe rock breaker operates using hydraulic power from the backhoe loader's hydraulic system. It is typically connected to the backhoe's boom or dipper arm with a mounting bracket, and hydraulic hoses transfer the hydraulic fluid and pressure between the backhoe and the breaker. The breaker consists of a housing, a striking tool (chisel or moil point), and a piston mechanism.
When activated, the hydraulic system of the backhoe loader delivers pressurized hydraulic fluid to the breaker, which then forces the piston to strike the tool against the material being worked on. The repetitive blows or impacts from the tool break down the material into smaller pieces. The backhoe operator controls the operation of the breaker using the backhoe's controls, such as joystick and buttons.
(1) What Hydraulic Rock Breaker Hammers Hanyun Produce?
1. Heavy duty hydraulic rock breaker hammers with breaker chisels diameter from 140mm to 200mm, carrier 25-70t
2. Medium-duty hydraulic rock breaker hammers with breaker chisels diameter from 85mm to 135mm, carrier 10-25t
3. Light duty hydraulic rock breaker hammers with breaker chisels diameter from 45mm to 85mm, carrier 1-10t
(2) Main technical parameters on light duty hydraulic jack hammer for excavator
Model | HY45 | HY53 | HY68 | HY75 | HY85 |
Breaker shell (KGS) | 40 | 60 | 100 | 200 | 400 |
Total weight (KG) | 102 | 140 | 264 | 345 | 493 |
Size (MM) | 750*270*480 | 830*290*570 | 950*330*700 | 1140*370*740 | 1270*370*800 |
Driving oil pressure (KG/CM2) | 90-120 | 90-120 | 110-140 | 120-150 | 130-160 |
Driving oil flow (L/MIN) | 20-40 | 25-50 | 40-70 | 50-90 | 60-100 |
Striking(BPM) | 700-1200 | 600-1200 | 500-900 | 400-800 | 400-800 |
Soft hose diameter (INCH) | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 |
Breaker chisel diameter (MM) | 45 | 53 | 68 | 75 | 85 |
Breaker chisel weight (KG) | 8 | 12 | 16 | 22 | 48 |
Applicable carrier weight (T) | 1.2-3.0 | 2.0-4.0 | 4-7 | 6-9 | 7-14 |
(3) Main technical parameters on medium duty hydraulic jack hammer for excavator
Model | HY100 | HY120 | HY135 | HY140 | HY155 |
Breaker shell (KGS) | 450 | 500 | 600 | 800 | 1450 |
Total weight (KG) | 736 | 1374 | 1663 | 1700 | 2350 |
Size (MM) | 1340*430*970 | 1475*530*1000 | 1610*530*1280 | 1660*530*1280 | 1900*635*1350 |
Driving oil pressure (KG/CM2) | 150-170 | 150-170 | 180-220 | 190-230 | 230-260 |
Driving oil flow (L/MIN) | 80-110 | 90-120 | 100-150 | 120-180 | 180-240 |
Striking(BPM) | 350-700 | 350-650 | 350-600 | 350-500 | 300-450 |
Soft hose diameter (INCH) | 3/4 | 3/4 | 1 | 1 | 1.2 |
Breaker chisel diameter (MM) | 100 | 120 | 135 | 140 | 155 |
Breaker chisel weight (KG) | 50 | 120 | 125 | 130 | 190 |
Applicable carrier weight (T) | 11-16 | 12-18 | 18-23 | 19-25 | 25-30 |
(3) Main technical parameters on heavy duty hydraulic jack hammer for excavator
Model | HY165 | HY175 | HY185 | HY195 |
Breaker shell (KGS) | 1500 | 1700 | 2100 | 2300 |
Total weight (KG) | 3350 | 4102 | 4950 | 5260 |
Size (MM) | 2010*650*1420 | 2310*715*1630 | 2240*750*1620 | 2460*750*1670 |
Driving oil pressure (KG/CM2) | 260-280 | 260-280 | 280-300 | 280-320 |
Driving oil flow (L/MIN) | 190-250 | 210-290 | 220-270 | 230-280 |
Striking(BPM) | 300-450 | 200-350 | 180-220 | 180-200 |
Soft hose diameter (INCH) | 1.2 | 1.2 | 1.2 | 1.2 |
Breaker chisel diameter (MM) | 165 | 175 | 185 | 195 |
Breaker chisel weight (KG) | 220 | 260 | 300 | 340 |
Applicable carrier weight (T) | 30-36 | 36-42 | 42-48 | 48-55 |
(4) Where are hydraulic excavator hammers used?
Hydraulic excavator hammers are used in below fields:
1. Mine mining
Mountain mining, mining, grid sieve crushing, secondary crushing
2. Metallurgy
Ladle, slag cleaning, demolition body, equipment foundation demolition
3. Railway
Mountain excavation, tunnel excavation, road and bridge demolition, roadbed consolidation
4. Road
Highway repair, cement pavement broken, foundation excavation
5. Municipal Garden
Concrete crushing, water, electricity and gas engineering construction, old city reconstruction
6. Building
Demolition of old buildings, broken reinforced concrete
7. Ship
Removal of clams and rust from the hull
8. Other fields
Break ice, break frozen soil, sand vibration
(5) FAQ
1. Q: Are you a direct factory?
A: Yes, we are one big factory in China. And comprehensive strength of our company ranks top 3 in China market.
2. Q: How do you ship the concrete structures demolition hammers?
A: Usually we will cover demolition hammers with plastic film firstly, then load them into the container.
3. Q: When you will deliver the products after we place one order?
A: Usually 3-10 working days for the standard size. For customized hydraulic hammers, about 15 days
4. Q: What is your payment method?
A: L/C, T/T available for the payment. Usually 30% TT as deposit, 70% blanced by TT before shipping
