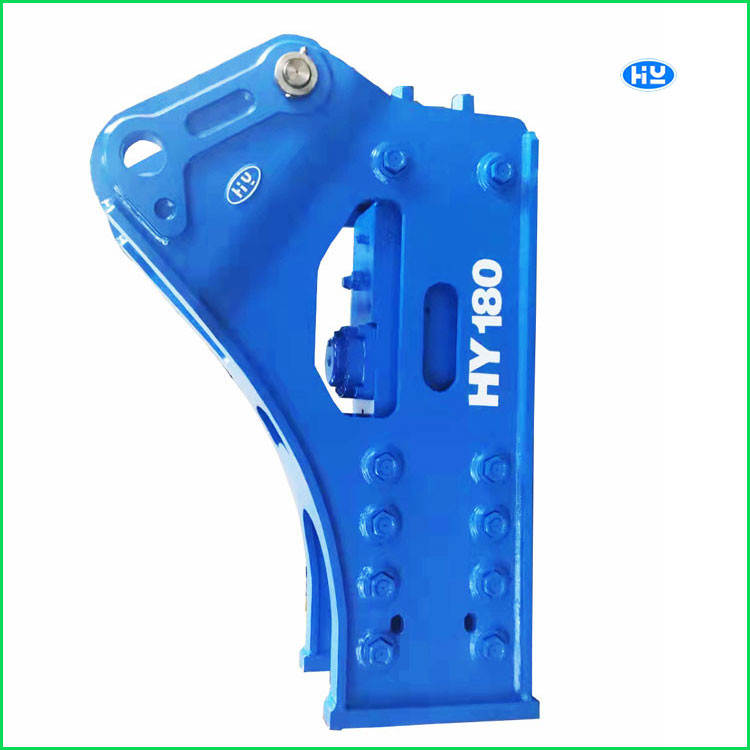

Hydraulic Excavator Rock Hammer / Mini Excavator Breaker 40 Gpm
  • Hydraulic Excavator Rock Hammer / Mini Excavator Breaker 40 Gpm
  • Hydraulic Excavator Rock Hammer / Mini Excavator Breaker 40 Gpm
  • Hydraulic Excavator Rock Hammer / Mini Excavator Breaker 40 Gpm
Place of Origin China
Brand Name HANYUN
Certification COC
Model Number Chisel diameter 45mm
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details plywood box or container
Delivery Time 3-20working days
Supply Ability 5000 sets per year
Product Details
Carrier Height 8-15 Ft Carrier Length 20-30 Ft
Carrier Weight 25,000-50,000 Lbs Carrier Width 5-10 Ft
Drill Rod Connector Hex/Square/Threaded Drill Rod Length 10-20 Ft
Drill Rod Material Steel/Carbon Steel Drill Rod Size 1-3 In
Drill Rod Weight 50-100 Lbs Impact Energy 2,000-3,500 Ft-lbs
Impact Frequency 1,800-2,400 Blows/min Operating Flow 20-40 Gpm
Operating Pressure 1,000-2,000 Psi Product Name Hydraulic Excavator Hammers
High Light

Hydraulic Excavator Rock Hammer

,

Mini excavator hydraulic breaker

,

40 gpm excavator hydraulic breaker
Product Description

Mini Excavator used mini excavator breaker hydraulic hammer rock hammer Product Introduction

　　Introducing our Mini Excavator Breaker: a compact powerhouse for demolition and excavation. Designed for mini excavators, it delivers maximum impact force and precise control. Built to withstand tough conditions, our durable breaker ensures reliable operation and boosts productivity. Take on concrete breaking and demolition projects with ease using our Mini Excavator Breaker, the ultimate choice for compact yet mighty power.



(1) What Hydraulic Rock Breaker Hammers Hanyun Produce?

1. Heavy duty hydraulic rock breaker hammers with breaker chisels diameter from 140mm to 200mm, carrier 25-70t

2. Medium-duty hydraulic rock breaker hammers with breaker chisels diameter from 85mm to 135mm, carrier 10-25t

3. Light duty hydraulic rock breaker hammers with breaker chisels diameter from 45mm to 85mm, carrier 1-10t



(2) Main technical parameters on light duty hydraulic jack hammer for excavator

Model HY45 HY53 HY68 HY75 HY85
Breaker shell (KGS) 40 60 100 200 400
Total weight (KG) 102 140 264 345 493
Size (MM) 750*270*480 830*290*570 950*330*700 1140*370*740 1270*370*800
Driving oil pressure (KG/CM2) 90-120 90-120 110-140 120-150 130-160
Driving oil flow (L/MIN) 20-40 25-50 40-70 50-90 60-100
Striking(BPM) 700-1200 600-1200 500-900 400-800 400-800
Soft hose diameter (INCH) 1/2 1/2 1/2 1/2 3/4
Breaker chisel diameter (MM) 45 53 68 75 85
Breaker chisel weight (KG) 8 12 16 22 48
Applicable carrier weight (T) 1.2-3.0 2.0-4.0 4-7 6-9 7-14





(3) Main technical parameters on medium duty hydraulic jack hammer for excavator

Model HY100 HY120 HY135 HY140 HY155
Breaker shell (KGS) 450 500 600 800 1450
Total weight (KG) 736 1374 1663 1700 2350
Size (MM) 1340*430*970 1475*530*1000 1610*530*1280 1660*530*1280 1900*635*1350
Driving oil pressure (KG/CM2) 150-170 150-170 180-220 190-230 230-260
Driving oil flow (L/MIN) 80-110 90-120 100-150 120-180 180-240
Striking(BPM) 350-700 350-650 350-600 350-500 300-450
Soft hose diameter (INCH) 3/4 3/4 1 1 1.2
Breaker chisel diameter (MM) 100 120 135 140 155
Breaker chisel weight (KG) 50 120 125 130 190
Applicable carrier weight (T) 11-16 12-18 18-23 19-25 25-30



(3) Main technical parameters on heavy duty hydraulic jack hammer for excavator

Model HY165 HY175 HY185 HY195
Breaker shell (KGS) 1500 1700 2100 2300
Total weight (KG) 3350 4102 4950 5260
Size (MM) 2010*650*1420 2310*715*1630 2240*750*1620 2460*750*1670
Driving oil pressure (KG/CM2) 260-280 260-280 280-300 280-320
Driving oil flow (L/MIN) 190-250 210-290 220-270 230-280
Striking(BPM) 300-450 200-350 180-220 180-200
Soft hose diameter (INCH) 1.2 1.2 1.2 1.2
Breaker chisel diameter (MM) 165 175 185 195
Breaker chisel weight (KG) 220 260 300 340
Applicable carrier weight (T) 30-36 36-42 42-48 48-55



Hydraulic Excavator Rock Hammer / Mini Excavator Breaker 40 Gpm 0

(4) Where are hydraulic excavator hammers used?

Hydraulic excavator hammers are used in below fields:

1. Mine mining

Mountain mining, mining, grid sieve crushing, secondary crushing

2. Metallurgy

Ladle, slag cleaning, demolition body, equipment foundation demolition

3. Railway

Mountain excavation, tunnel excavation, road and bridge demolition, roadbed consolidation

4. Road

Highway repair, cement pavement broken, foundation excavation

5. Municipal Garden

Concrete crushing, water, electricity and gas engineering construction, old city reconstruction

6. Building

Demolition of old buildings, broken reinforced concrete

7. Ship

Removal of clams and rust from the hull

8. Other fields

Break ice, break frozen soil, sand vibration

Hydraulic Excavator Rock Hammer / Mini Excavator Breaker 40 Gpm 1

(5) FAQ

1. Q: Are you a direct factory?

A: Yes, we are one big factory in China. And comprehensive strength of our company ranks top 3 in China market.

2. Q: How do you ship the concrete structures demolition hammers?

A: Usually we will cover demolition hammers with plastic film firstly, then load them into the container.

3. Q: When you will deliver the products after we place one order?

A: Usually 3-10 working days for the standard size. For customized hydraulic hammers, about 15 days

4. Q: What is your payment method?

A: L/C, T/T available for the payment. Usually 30% TT as deposit, 70% blanced by TT before shipping
