Excavator Hydraulic Jack Breaker Hammer With Chisels Rock SB Series 20CrMo
Product Details
| Type | Side Type/top Type/ Box Silence Type Hydraulic Breaker Hammer | Application | Minin, Demilation, Bridge, Construction, Road |
|---|---|---|---|
| Material | Q345B, 42CrMo, 20CrNiMo3, 20CrMo | Suitable Excavator | 1-80tons |
| Condition | New | Packing | Export Pallet |
| Chiesel Diameter | 45mm/68mm/75mm/85mm/100mm/135mm/140mm | OEM | Avaliable |
| Color | Customized Color | Warranty | 1 Year |
| High Light | hydraulic Jack Breaker hammer with chisels,SB Series hydraulic Jack Breaker hammer,20CrMo hydraulic Breaker hammer |
||
Product Description
Factory direct sale high quality excavator rock breaker SB series hydraulic Jack hammer with chisels
HANYUN Hydraulic Hammer
1. Selected raw material - high quality heavy duty wear resistant steel.
2. Leading heat treatment technology. Heat resistance and abrasion resistance are enhanced.
3. The device can adjust the flow from excavator and power source, so it can adjust the impact force and beat frequency according
to different working situation.
4. High-quality and durable wear parts ,longer use, easy maintenance.
5. Strong " hydraulic + nitrogen " impact system, increase stability.
6. Advanced manufacturing facilities and technology, introduced from South Korea.
7. High energy and impact frequency, High-performance optimized hydraulic unit.

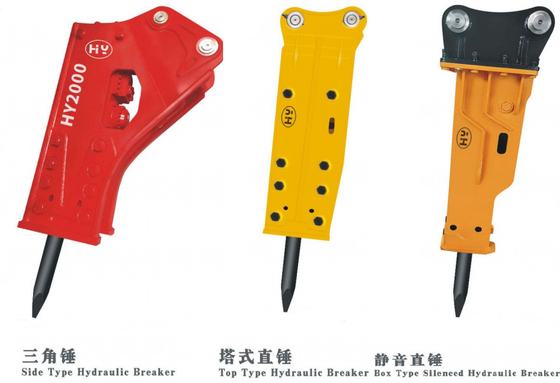

Three types of hydraulic breaker hammers
Parameter of HANYUN side type hydraulic breaker
| HANYUN Side type Hydraulic breaker | ||||||||
| Model | Total weight (KG) | Diameter of chisel(MM) | Weight of chisel(KG) | Operating pressure(BAR) | Hydraulic flow range(L/MIN) | Impact frequency(BPM) | Carrier weight (ton) | Valve Ass'y Position |
| HY400 | 70 | 40 | 4 | 90-120 | 15-25 | 800-1400 | 0.8-2.5 | Internal |
| HY450 | 95 | 45 | 8 | 90-120 | 20-30 | 700-1200 | 1.2-3.0 | Internal |
| HY530 | 158 | 53 | 9 | 90-120 | 25-50 | 600-1100 | 2.5-4.5 | Internal |
| HY680 | 263 | 68 | 18 | 110-140 | 40-70 | 500-900 | 4-7 | Internal |
| HY750 | 334 | 75 | 22 | 120-150 | 50-90 | 400-800 | 6-9 | Internal |
| HY850 | 493 | 85 | 29 | 130-160 | 60-100 | 400-800 | 7-14 | Internal |
| HY1000 | 736 | 100 | 57 | 150-170 | 80-110 | 350-700 | 10-15 | Internal |
| HY1200 | 1374 | 120 | 89 | 150-170 | 90-120 | 350-650 | 15-18 | Internal |
| HY1350 | 1653 | 135 | 115 | 160-180 | 130-150 | 400-600 | 18-26 | Internal |
| HY1400 | 1774 | 140 | 135 | 160-180 | 120-180 | 350-5000 | 18-26 | Internal |
| HY1500 | 2281 | 150 | 164 | 160-180 | 150-190 | 350-700 | 27-35 | Internal |
| HY1550 | 2577 | 155 | 183 | 160-180 | 180-240 | 300-450 | 28-35 | Internal |
| HY1600 | 3075 | 160 | 200 | 160-180 | 200-260 | 250-400 | 30-40 | Internal |
| HY1650A | 2751 | 165 | 224 | 160-180 | 200-260 | 250-400 | 30-40 | Internal |
| HY1650B | 3277 | 165 | 215 | 170-200 | 200-260 | 250-400 | 30-40 | Internal |
| HY1750 | 3905 | 175 | 247 | 260-270 | 250-300 | 200-300 | 45-50 | Internal |
| HY1850 | 4365 | 185 | 269 | 270-280 | 220-290 | 150-250 | 45-50 | Internal |
| HY1950 | 4841 | 185 | 269 | 270-280 | 250-320 | 150-250 | 50-60 | Internal |
| HY2000 | 5800 | 200 | 321 | 270-280 | 250-320 | 150-250 | 50-60 | Internal |
Picture of HANYUN breaker
HANYUN FACTORY
FAQ
| Q: Are you a manufacturer? |
| A: Yes, our factory was established in 2011. |
| Q: Are you sure your product will fit my excavator? |
| A: Our machines are suitable for most excavators.Show us your excavator model, we'll confirm the solution. |
| Q: How about your products warranty? |
| A: 12 months warranty for hydraulic breaker6 months warranty for spare parts beyond the warranty period. |
| Q: Can you produce according to customers design? |
| A: Sure, OEM/ODM service available.We are professional manufacturer in Jiangsu. |
| Q: What's the MOQ and payment terms? |
| A: MOQ of hydraulic breaker is 1set.Payment via T/T, Western Union accepted, other terms can be negotiated. |
| Q: How about delivery time? |
| A: 5-25 work days after the payment |
| Q: Which country have you exported? |
| A:Saudi Arabia, Korea,Thailand, Indonesia, India, Canada,Switzerland ,Vietnam , Iran, Turkey, Peru, Egypt, Brazil, Mexico, South Africa etc. |
| Q: How about the package? |
| A: Our machines wrapped by stretch film packed by pallet or poly wood case or as requested. |
