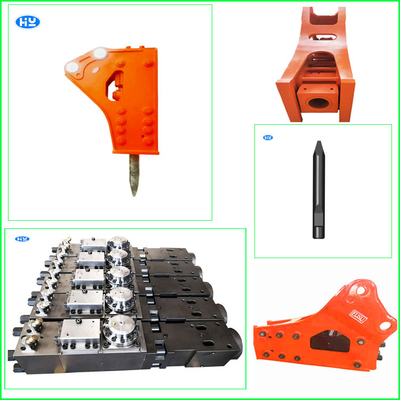

26 Tons Mining Excavator Hydraulic Rock Breaker Hammer Drilling Rods SB70 For Demolition
Product Details
| Core Components | Chisel, Main Body | Model | HY140 |
|---|---|---|---|
| Suitable Excavator | 18-26 Tons | Diameter Of Chisel | 140mm |
| Weight Of Chisel | 135kgs | Operating Pressure | 160-180bar |
| Hydraulic Flow Range | 120-180 L/MIN | Impact Frenqency | 350-500 Bpm |
| Type | Side Type/top Type/ Box Silence Type Hydraulic Breaker Hammer | ||
| High Light | 180bar Excavator Rock Breaker Hammer,Mining Excavator Rock Breaker Hammer,26 Tons Excavator Rock Breaker Hammer |
||
Product Description
Hot sale 18-26 tons excavator hydraulic breaker drilling rods SB70 Mining Excavator Rock Breaker hammer for demolition
(1) Product description
Excavator hydraulic jack hammer belongs to excavator attachments which help break or crush hard objects
in the construction sites, also known as hydraulic breaker, hydraulic hammer, hydraulic concrete breaker,
hydraulic demolition hammer, hydraulic breaker hammers, etc.
(2)Main technical parameters on light duty hydraulic jack hammer for excavator
| Model | HY45 | HY53 | HY68 | HY75 | HY85 |
| Breaker shell (KGS) | 40 | 60 | 100 | 200 | 400 |
| Total weight (KG) | 102 | 140 | 264 | 345 | 493 |
| Size (MM) | 750*270*480 | 830*290*570 | 950*330*700 | 1140*370*740 | 1270*370*800 |
| Driving oil pressure (KG/CM2) | 90-120 | 90-120 | 110-140 | 120-150 | 130-160 |
| Driving oil flow (L/MIN) | 20-40 | 25-50 | 40-70 | 50-90 | 60-100 |
| Striking(BPM) | 700-1200 | 600-1200 | 500-900 | 400-800 | 400-800 |
| Soft hose diameter (INCH) | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 |
| Breaker chisel diameter (MM) | 45 | 53 | 68 | 75 | 85 |
| Breaker chisel weight (KG) | 8 | 12 | 16 | 22 | 48 |
| Applicable carrier weight (T) | 1.2-3.0 | 2.0-4.0 | 4-7 | 6-9 | 7-14 |
(3) Main technical parameters on medium duty hydraulic jack hammer for excavator
| Model | HY100 | HY120 | HY135 | HY140 | HY155 |
| Breaker shell (KGS) | 450 | 500 | 600 | 800 | 1450 |
| Total weight (KG) | 736 | 1374 | 1663 | 1700 | 2350 |
| Size (MM) | 1340*430*970 | 1475*530*1000 | 1610*530*1280 | 1660*530*1280 | 1900*635*1350 |
| Driving oil pressure (KG/CM2) | 150-170 | 150-170 | 180-220 | 190-230 | 230-260 |
| Driving oil flow (L/MIN) | 80-110 | 90-120 | 100-150 | 120-180 | 180-240 |
| Striking(BPM) | 350-700 | 350-650 | 350-600 | 350-500 | 300-450 |
| Soft hose diameter (INCH) | 3/4 | 3/4 | 1 | 1 | 1.2 |
| Breaker chisel diameter (MM) | 100 | 120 | 135 | 140 | 155 |
| Breaker chisel weight (KG) | 50 | 120 | 125 | 130 | 190 |
| Applicable carrier weight (T) | 11-16 | 12-18 | 18-23 | 19-25 | 25-30 |
(4) Main technical parameters on heavy duty hydraulic jack hammer for excavator
| Model | HY165 | HY175 | HY185 | HY195 |
| Breaker shell (KGS) | 1500 | 1700 | 2100 | 2300 |
| Total weight (KG) | 3350 | 4102 | 4950 | 5260 |
| Size (MM) | 2010*650*1420 | 2310*715*1630 | 2240*750*1620 | 2460*750*1670 |
| Driving oil pressure (KG/CM2) | 260-280 | 260-280 | 280-300 | 280-320 |
| Driving oil flow (L/MIN) | 190-250 | 210-290 | 220-270 | 230-280 |
| Striking(BPM) | 300-450 | 200-350 | 180-220 | 180-200 |
| Soft hose diameter (INCH) | 1.2 | 1.2 | 1.2 | 1.2 |
| Breaker chisel diameter (MM) | 165 | 175 | 185 | 195 |
| Breaker chisel weight (KG) | 220 | 260 | 300 | 340 |
| Applicable carrier weight (T) | 30-36 | 36-42 | 42-48 | 48-55 |
