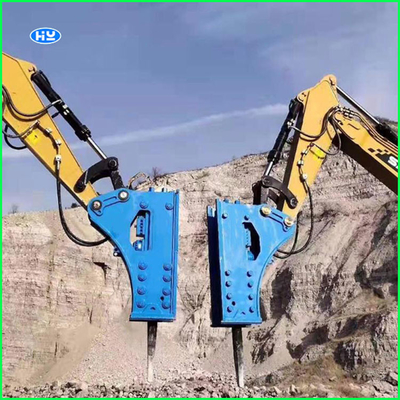

30 Ton SB131 Hydraulic Rock Jack Hammer Breaker Excavator Side For Backhoe Loader

30 Ton SB131 Hydraulic Rock Jack Hammer Breaker Excavator Side For Backhoe Loader

  • High Light

    Hydraulic Rock Breaker Jack Hammer

    ,

    SB131 Hydraulic Rock Breaker

    ,

    165 mm Hydraulic Rock Jack Hammer

  • Item 1
    Hydraulic Breaker Hammers
  • Item 2
    Hydraulic Jack Breaker
  • Breaker Chisels Diameter
    165 Mm
  • Breaker Main Body
    Front Head, Middle Cylinder And Back Head
  • Working Purpose
    Trenching, Earthmoving, Mining, Quarry And Digging
  • Quality Warranty
    1 Year
  • Applicable Skid Steers
    30-36 Ton
  • Piston Materials
    GCr5/20CrNiMo
  • Place of Origin
    China
  • Brand Name
    HANYUN
  • Model Number
    HY165
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable price
  • Packaging Details
    plywood box or other exported packages
  • Delivery Time
    3-15working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10,000 sets per year

30 Ton SB131 Hydraulic Rock Jack Hammer Breaker Excavator Side For Backhoe Loader

30 Ton Excavator Side Type Jack Hammer SB131 Hydraulic Rock Breaker For Backhoe Loader



(1) Main technical parameters on HY165 hydraulic jack breaker hydraulic jack hammers

Model: HY165

Applicable vehicle weight: 30-36t

Overall size: 2010*650*1420mm

Total weight: 3350kgs

Driving oil pressure: 260-280kg/cm2

Driving oil flow: 190-250L/MIN

Striking frequency: 300-450BPM

Soft hose diameter: 1.2 inch

Excavator rock breaking hammer chisel diameter: 165mm

Hammer chisel weight: 220kgs



(2) Main parts used for hydraulic jack hammer

Through bolt: High strength through bolts, firmly fixing front head, middle cylinder and back head

  of hydraulic jack hammers body
Hydraulic Jack Hammer Piston: Raw material:20CrNiMo, GCr15
Hammer Main Body: Making up of Front head, cylinder and back head.
Hammer Chisel: Raw materials 40Cr/42 CrMo
Bushing: Raw materials: 20CrMo



(3) Worksites of excavator demolition rammer

Mining projects Mining excavation
Quarry projects Rock and stone breaking
Trenching projects Trenching and digging
Concrete structures projects

Building demolition

Concrete structures demolition and recycling

Earthwork Mountain excavation
Road projects

Concrete road breaking and recycling

Asphalt road breaking and recycling

Construction worksite Road and bridge excavation
Tunnel Tunnel excavation
Slag cleaning Slag removing and cleaning for kilns
Debricking De-bricking and recycling
Metallurgical Engineering Cleaning



(4) FAQ

1. Q: Are you a direct factory?

A: Yes, we are one big factory in China. And comprehensive strength of our company ranks top 3 in China market.



2. Q: Do you provide on-site installation service?

A: Yes, on-site installation service is available. And currently we are looking for wholesale distributors worldwide. In the coming future, our local distributors could serve you very soon in 24 hours



3. Q: Could I be your agent?

A: Yes, it is possible for you to be our agent overseas. For more details, please contact Lisa by whatsapp: 0086-17788159708



4. Q: How do you ship the concrete structures demolition hammers?

A: Usually we will cover demolition hammers with plastic film firstly, then load them into the container.



5. Q: When you will deliver the products after we place one order?

A: Usually 3-10 working days for the standard size. For customized hydraulic hammers, about 15 days



6. Q: What is your payment method?

A: L/C, T/T available for the payment. Usually 30% TT as deposit, 70% blanced by TT before shipping



7. Q: What is your quality warranty period?

A: For the complete hydraulic breakers, 6 months-12 months quality warranty period. But quick-wearing

spare parts are not included.
