DavidNice hammer from Hanyun, their service great, I love their price more
-
MarkHydraulic breakers from HY suit my CAT well, it beats the ground powerfully, the sound beautiful.
Name | Hydraulic Breaker Hammers | Quality Warranty | 1 Year |
---|---|---|---|
Chisel Length | 1000mm | Chisel Diameter | 120mm |
Chisel Qty Sent | 2 Pieces | Color | Customized Color |
Working Purpose | Quarry And Mining Stone And Rock Breaking | Excavator Used | Excavator Demolition Attachments |
Highlight | Quarry Hydraulic Breaker Hammers,120mm Chisels Excavator Demolition Attachments,Breaker Hammers Excavator Demolition Attachments |
Excavator Demolition Attachments Hydraulic Breaker Hammers 120mm Chisels
(1) Hydraulic breaker hammers belong to excavator demolition attachments tools
It is made up of breaker shells, breaker body, breaker chisels and other spare parts
(2) How to select good hydraulic breaker hammers?
1. Good hydraulic breaker hammers must be suitable for excavator models and working environment;
2. Good hydraulic breaker hammers must have good quality and long service life;
3. Good hydraulic breaker hammers may not be expensive, but they could help users to finish projects smoothly;
4. Hanyun made hydraulic breaker hammers will be a good choice
(3) Main Technical Parameters on hydraulic stone breakers hydraulic rock hammers
Model | HY45 | HY53 | HY68 | HY75 | HY85 | HY100 | HY120 |
Breaker shell (KGS) | 40 | 60 | 100 | 200 | 400 | 450 | 500 |
Total weight (KG) | 102 | 140 | 264 | 345 | 493 | 736 | 1374 |
Size (MM) | 750*270*480 | 830*290*570 | 950*330*700 | 1140*370*740 | 1270*370*800 | 1340*430*970 | 1475*530*1000 |
Driving oil pressure (KG/CM2) | 90-120 | 90-120 | 110-140 | 120-150 | 130-160 | 150-170 | 150-170 |
Driving oil flow (L/MIN) | 20-40 | 25-50 | 40-70 | 50-90 | 60-100 | 80-110 | 90-120 |
Striking(BPM) | 700-1200 | 600-1200 | 500-900 | 400-800 | 400-800 | 350-700 | 350-650 |
Soft hose diameter (INCH) | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 |
Breaker chisel diameter (MM) | 45 | 53 | 68 | 75 | 85 | 100 | 120 |
Breaker chisel weight (KG) | 8 | 12 | 16 | 22 | 48 | 50 | 120 |
Applicable carrier weight (T) | 1.2-3.0 | 2.0-4.0 | 4-7 | 6-9 | 7-14 | 11-16 | 12-18 |
(4) Why Hanyun hydraulic rock hammer is a good choice?
1. Top 3 productivity for hydraulic breaker shells and breaker chisels in China market;
2. Self-owned heat treatment technology ensures good quality of products;
3. Self-made all parts from breaker shells to breaker bodies to breaker chisels to spare parts;
4. Continuous supplying of spare parts and alternative parts with a reliable price;
5. Perfect after-sale service;
6. Focusing on helping customers build plans and solve problems on hydraulic breaker hammers.

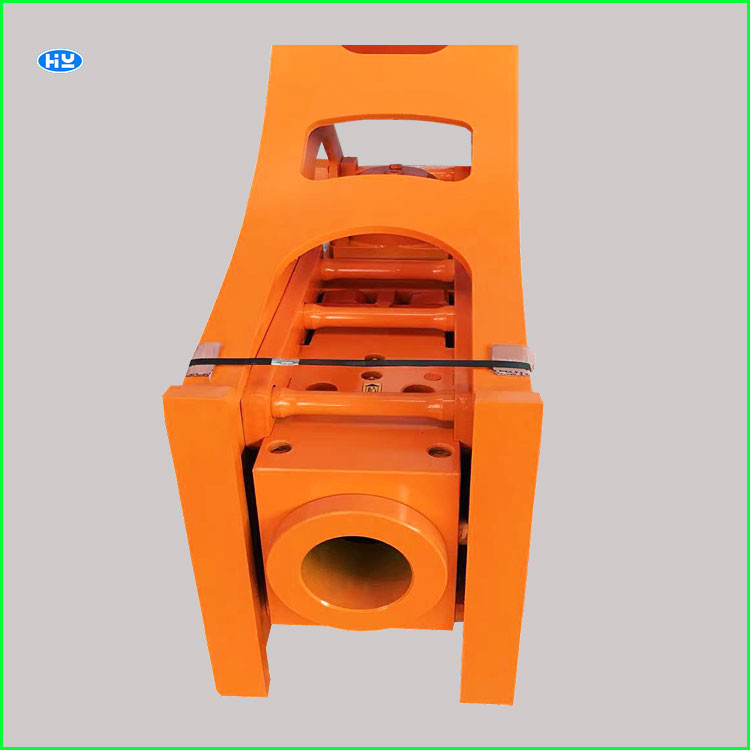

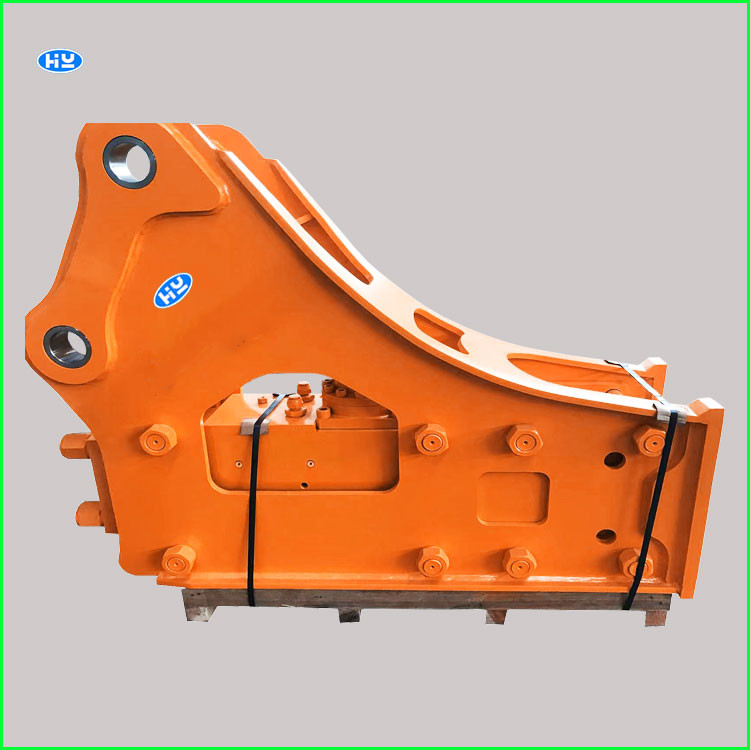

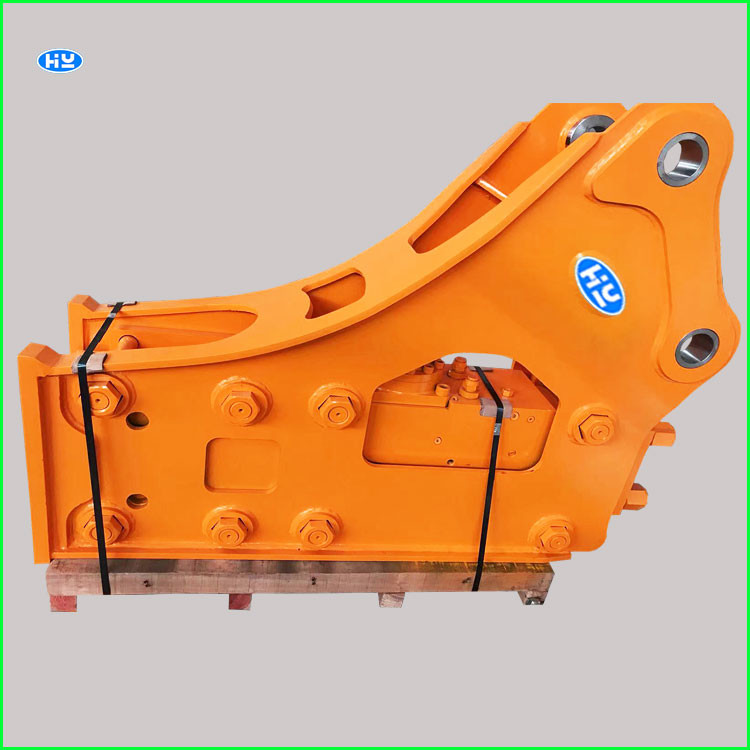

(5) Pictures for reference
(6) FAQ
1. Do you accept one trial order?
A: Yes. One trial order will be a very good start for you to check hydraulic breaker hammers made by us.
We cherish each and every trial order from you;
2. What is your quality warranty period?
A: For complete machines, 1 year quality warranty period; for hydraulic breaker chisels and other quick-wearing spare parts,
not included.
3. What is your payment terms?
A: After placing one order, 30%TT will be made as one deposit, 70%TT could be done before delivery
