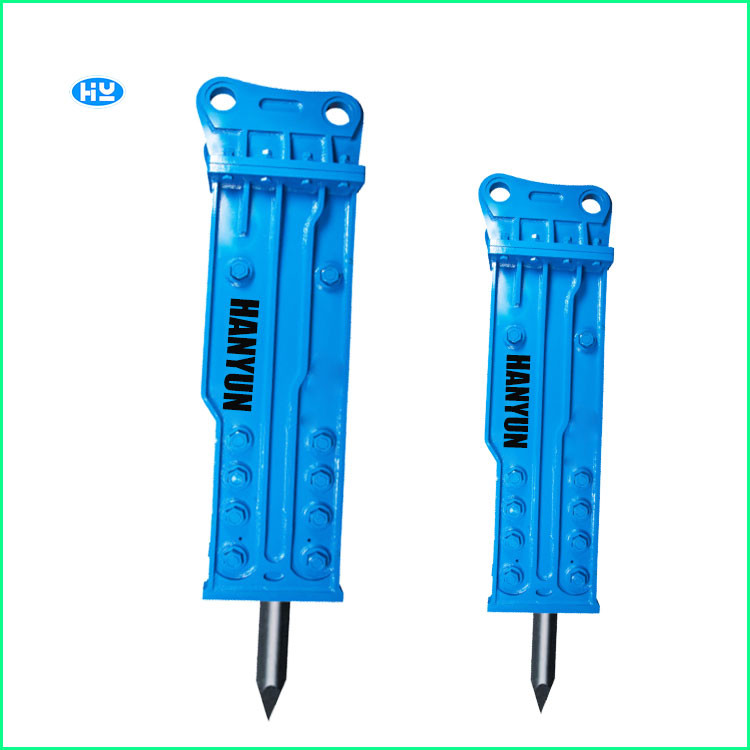

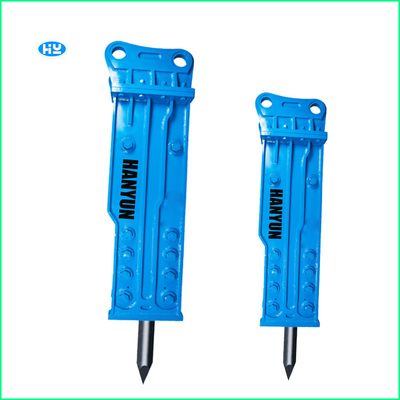

120mm Chisels Excavator Jack Hammer 120 L/MIN 40Cr Hydraulic Breaker
  • 120mm Chisels Excavator Jack Hammer 120 L/MIN 40Cr Hydraulic Breaker
Place of Origin CHINA
Brand Name HANYUN
Certification CE/ISO
Model Number 120mm chisels
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Exported packages/fumigation-free plywood box
Delivery Time 5-15 working days
Payment Terms L/C, , T/T, D/A, D/P
Supply Ability 5000 sets per year
Product Details
Item Hydraulic Excavator Breaker Breaker Chisel Diameter 120mm
Breaker Chisel Materials 40Cr Soft Hose Diameter 1.2 Inch
Driving Oil Pressure 150-170kg/cm2 Hydraulic Oil Flow 90-120 L/MIN
Quality Warranty 1 Year Loading Port China Ports Like Tianjin, Qingdao, Shanghai Ports
High Light

120mm chisels excavator jack hammer

,

120 L/MIN excavator jack hammer

,

40Cr hydraulic jack hammer
Product Description

Different Models Hydraulic Excavator Breaker Excavator Jack Hammers In Stocking



(1) Please select one suitable hydraulic excavator breaker according to below details

Hydraulic breaker

model

 Overall size (L*W*H)(MM)

Total weight/

Shell weight

(KGS)

Breaker chisel diameter (MM)/

Weight (KGS)

Applicable carrier weight

(T)
HY45 750*270*480 102/40 45/ 8 1.2-3.0
HY53 830*290*570 140/60 53/12 2.0-4.0
HY68 950*330*700 264/100 68/16 4.0-7.0
HY75 1140*370*740 345/200 75/22 6.0-9.0
HY85 1270*370*800 493/400 85/48 7-14
HY100 1340*430*970 736/450 100/50 11-16
HY120 1475*530*1000 1374/500 120/120 12-18
HY135 1610*530*1280 1663/600 135/125 18-23
HY140 1660*530*1280 1700/800 140/130 19-25
HY155 1900*635*1350 2635/1450 155/190 25-30
HY165 2010*650*1420 3350/1500 165/220 30-36
HY175 2310*715*1630 4102/1700 175/660 36-42
HY185 2240*750*1620 4950/2100 185/300 42-48
HY195 2460*750*1670 5260/2300 195/340 48-55
HY210 3660*864*1945 6814/3550 210/390 60-80



(2) How to get one quick and reliable offer in 24 hours?

Below details are needed to send you one quick and reliable offer:

1. Excavator model

2. Working environment

3. Quantity demanded

4. Contact information

120mm Chisels Excavator Jack Hammer 120 L/MIN 40Cr Hydraulic Breaker 0
