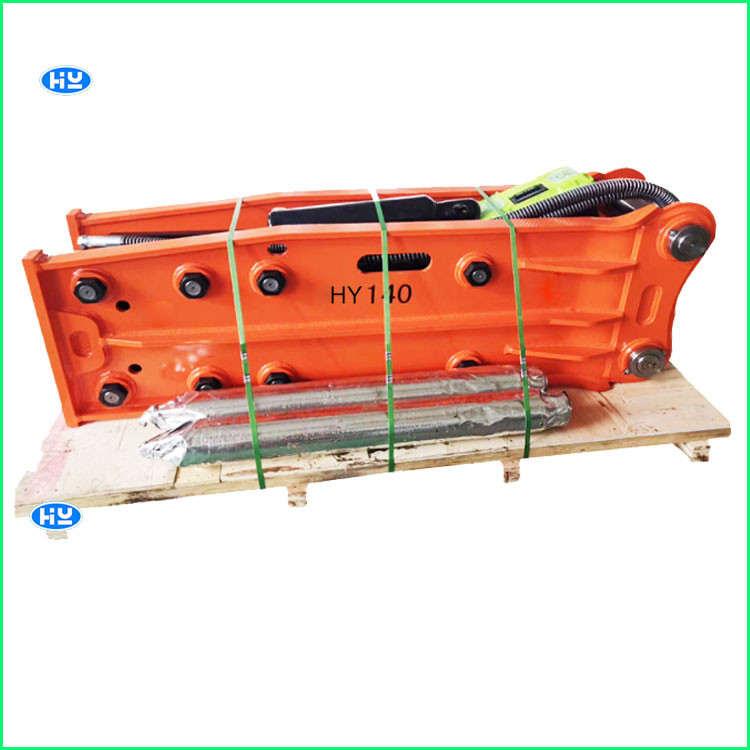

12-18 Tons Hydraulic Rock Breaker 120mm Chisel 42CRMO Excavator Mounted Hammer

12-18 Tons Hydraulic Rock Breaker 120mm Chisel 42CRMO Excavator Mounted Hammer

  • High Light

    12-18 tons Hydraulic Rock Breaker

    ,

    120mm chisel Hydraulic Rock Breaker

    ,

    42CRMO excavator mounted hammer

  • Item 1
    Hydraulic Rock Breaker
  • Item 2
    Hydraulic Rock Hammer
  • Breaker Chisel Diameter
    120 Mm
  • Breaker Chisel Feature
    High Strength And Anti-wearing
  • Breaker Chisel Materials
    42CRMO
  • Near Port
    Qingdao/Tianjin/Shanghai Port
  • Applicable Excavator Weight
    12-18t
  • Applicable Skid Steer Weight
    12-18t
  • Place of Origin
    CHINA
  • Brand Name
    HANYUN
  • Certification
    ISO/CE
  • Model Number
    120mm breaker chisels
  • Minimum Order Quantity
    1 set/Negotiable
  • Price
    Negotiable
  • Packaging Details
    fumigation-free plywood box/ exported packages
  • Delivery Time
    5-20 working days
  • Payment Terms
    L/C, , T/T
  • Supply Ability
    5000 sets per year

12-18 Tons Hydraulic Rock Breaker 120mm Chisel 42CRMO Excavator Mounted Hammer



(1) Main technical parameters on light duty hydraulic rock breaker



Model HY45 HY53 HY68 HY75 HY85
Breaker shell (KGS) 40 60 100 200 400
Total weight (KG) 102 140 264 345 493
Size (MM) 750*270*480 830*290*570 950*330*700 1140*370*740 1270*370*800
Driving oil pressure (KG/CM2) 90-120 90-120 110-140 120-150 130-160
Driving oil flow (L/MIN) 20-40 25-50 40-70 50-90 60-100
Striking(BPM) 700-1200 600-1200 500-900 400-800 400-800
Soft hose diameter (INCH) 1/2 1/2 1/2 1/2 3/4
Breaker chisel diameter (MM) 45 53 68 75 85
Breaker chisel weight (KG) 8 12 16 22 48
Applicable carrier weight (T) 1.2-3.0 2.0-4.0 4-7 6-9 7-14



Main technical parameters on medium duty hydraulic rock breaker

Model HY100 HY120 HY135 HY140 HY155
Breaker shell (KGS) 450 500 600 800 1450
Total weight (KG) 736 1374 1663 1700 2350
Size (MM) 1340*430*970 1475*530*1000

1610*530*1280

1660*530*1280

1900*635*1350

Driving oil pressure (KG/CM2) 150-170 150-170 180-220 190-230 230-260
Driving oil flow (L/MIN) 80-110 90-120 100-150

120-180

180-240
Striking(BPM) 350-700 350-650 350-600

350-500

300-450
Soft hose diameter (INCH) 3/4 3/4 1 1 1.2
Breaker chisel diameter (MM) 100 120 135 140 155
Breaker chisel weight (KG) 50 120 125 130 190
Applicable carrier weight (T) 11-16 12-18 18-23 19-25 25-30



(2) Types of hydraulic rock breaker

Side type hydraulic rock breaker Top type hydraulic rock breaker Silenced type hydraulic rock breaker
12-18 Tons Hydraulic Rock Breaker 120mm Chisel 42CRMO Excavator Mounted Hammer 0 12-18 Tons Hydraulic Rock Breaker 120mm Chisel 42CRMO Excavator Mounted Hammer 1 12-18 Tons Hydraulic Rock Breaker 120mm Chisel 42CRMO Excavator Mounted Hammer 2



(3) FAQ

1. Q: Are you one factory?

    A: Yes, we are one direct factory for producing hydraulic breaker hammers with 10 years experience;



2. Q: How do you control the quality?

    A: As purchasing raw materials, we will check effective components of steel; in production, physical testing

         and UT testing also used; after production, testing work of the complete machine;



3. Q: What is your quality warranty policy?

    A: For complete machine, usually 6 months to 12 months quality warranty period;

         For breaker chisels, they will be in quality warranty range when the breaker head damage <20cm;

         For any damaged caused by improper operation will not be included in quality warranty policy



4. Q: What is the delivery period of one complete hydraulic demolition breaker?

     A: For hydraulic demolition breaker with standard size, 3-7 days delivery period to China ports;

         For breaker with customized size: 7-15 days delivery period to China ports



5. Q: What is your payment method?

    A: T/T and L/C available

         For T/T: 30% deposit, 70% balance before shipping;

         For L/C: 30% deposit, 70% balance by L/C
