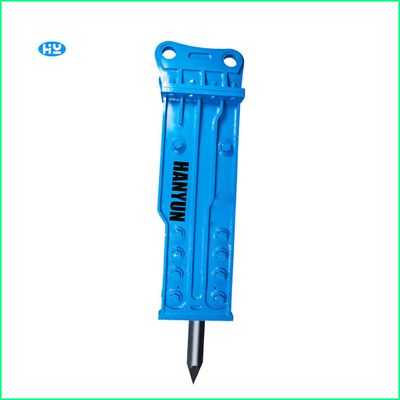

Blue 85mm Chisel Hydraulic Rock Breaker Skid Steer Excavator Hydraulic Hammer

Blue 85mm Chisel Hydraulic Rock Breaker Skid Steer Excavator Hydraulic Hammer

  • High Light

    Blue Hydraulic Rock Breaker

    ,

    85mm chisel Hydraulic Rock Breaker

    ,

    Skid Steer excavator hydraulic hammer

  • Item 1
    Hydraulic Rock Breaker
  • Item 2
    Concrete Breaker Attachment For Skid Steer
  • Breaker Chisel Diameter
    85 Mm
  • Breaker Chisel Feature
    High Strength And Anti-wearing
  • Breaker Chisel Materials
    40CR
  • Near Port
    Qingdao/Tianjin/Shanghai Port
  • Applicable Excavator Weight
    <14t
  • Applicable Skid Steer Weight
    <14t
  • Place of Origin
    CHINA
  • Brand Name
    HANYUN
  • Certification
    ISO/CE
  • Model Number
    85mm breaker chisels
  • Minimum Order Quantity
    1 set/Negotiable
  • Price
    Negotiable
  • Packaging Details
    fumigation-free plywood box/ exported packages
  • Delivery Time
    5-20 working days
  • Payment Terms
    L/C, , T/T
  • Supply Ability
    5000 sets per year

Blue 85mm Chisel Hydraulic Rock Breaker Skid Steer Excavator Hydraulic Hammer

Blue Hydraulic Rock Breaker Concrete Breaker Attachment For Skid Steer​



(1) Main technical parameters on Hydraulic Rock Breaker

Model HY75 HY85
Breaker shell (KGS) 200 400
Total weight (KG) 345 493
Size (MM) 1140*370*740 1270*370*800
Driving oil pressure (KG/CM2) 120-150 130-160
Driving oil flow (L/MIN) 50-90 60-100
Striking(BPM) 400-800 400-800
Soft hose diameter (INCH) 1/2 3/4
Breaker chisel diameter (MM) 75 85
Breaker chisel weight (KG) 22 48
Applicable carrier weight (T) 6-9 7-14



(2) How to select one suitable hydraulic demolition breaker?

1. According to excavator model/ hydraulic oil pressure

2. According to working environment

3. Hydraulic rock breaker weight shall be suitable for the carrier



(3) One complete hydraulic rock breaker include:

1. Hydraulic breaker shell * 1 set

2. Breaker chisels * 2 pieces

3. Nitrogen bottle & meter * 1 set

4. Soft hose * 2 pieces

5. Tool set * 1 set



(4) FAQ

1. Q: Are you one factory?

    A: Yes, we are one direct factory for producing hydraulic breaker hammers with 10 years experience;



2. Q: How do you control the quality?

    A: As purchasing raw materials, we will check effective components of steel; in production, physical testing

         and UT testing also used; after production, testing work of the complete machine;



3. Q: What is your quality warranty policy?

    A: For complete machine, usually 6 months to 12 months quality warranty period;

         For breaker chisels, they will be in quality warranty range when the breaker head damage <20cm;

         For any damaged caused by improper operation will not be included in quality warranty policy



4. Q: What is the delivery period of one complete hydraulic demolition breaker?

     A: For hydraulic demolition breaker with standard size, 3-7 days delivery period to China ports;

         For breaker with customized size: 7-15 days delivery period to China ports
