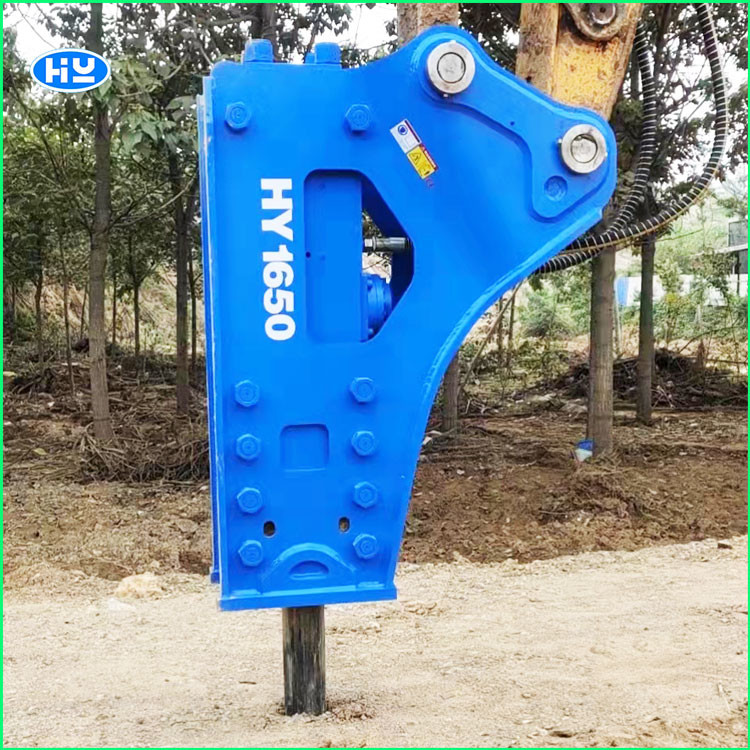

Q235B Steel 18t Hydraulic Demolition Hammer 135mm Chisels Hydraulic Rock Breaker

Q235B Steel 18t Hydraulic Demolition Hammer 135mm Chisels Hydraulic Rock Breaker

  • High Light

    Q235B steel Hydraulic Demolition Hammer

    ,

    18t Hydraulic Demolition Hammer

    ,

    135mm chisels hydraulic rock breaker

  • Breaker Name
    Hydraulic Excavator Hammer
  • Chisels Head
    Flat Head, Moil Point, Conical Head
  • Color
    Red Color Hydraulic Excavator Hammer
  • Breaker Shell
    Q345B/Q235B Thick Steel
  • Working Purpose
    Rock, Frozen Soil And Concrete Breaking Breaker
  • Excavator Used
    Light Duty, Medium Duty And Heavy Duty Excavator
  • Near Port
    Qingdao Port, Tianjin Port, Shanghai Port
  • Catagory
    Excavator Attachments
  • Place of Origin
    China
  • Brand Name
    HANYUN
  • Model Number
    HY135
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable Price
  • Packaging Details
    plywood box or container
  • Delivery Time
    3-20working days
  • Payment Terms
    L/C, T/T, D/A, D/P
  • Supply Ability
    1000 sets per year

Q235B Steel 18t Hydraulic Demolition Hammer 135mm Chisels Hydraulic Rock Breaker

Frozen Soil Breaking Rock Breaking Concrete Breaking Hydraulic Excavator Hammer

(1) Applications of hydraulic excavator hammer

1. Building demolition;

2. Concrete road breaking;

3. Asphat road breaking;

4. Frozen soil breaking;

5. Rock breaking in quarry and mining;

6. Trenching;

7. Tunnel excavating;

8. Mountain excavating;

9. Other hard objects breaking jobs


(2) Main Technical Parameters

Model of hydraulic excavator hammer 135mm hammer chisels
Total weight (KG) 1663
Size (MM) 1610*530*1280
Driving oil pressure (KG) 180-220
Driving oil volume (L/MIN) 100-150
Striking frequency(BPM) 350-600
Rubber hose diameter (INCH) 1
Drill rod diameter(MM) 135
Drill rod weight(KG) 125
Applicable vehicle weight (T) 18-23

Q235B Steel 18t Hydraulic Demolition Hammer 135mm Chisels Hydraulic Rock Breaker 0

Q235B Steel 18t Hydraulic Demolition Hammer 135mm Chisels Hydraulic Rock Breaker 1



(3)  FAQ

1. Q: How do you ship the concrete structures demolition hammers?

A: Usually we will cover demolition hammers with plastic film firstly, then load them into the container.



2. Q: When you will deliver the products after we place one order?

A: Usually 3-10 working days for the standard size. For customized hydraulic hammers, about 15 days



3. Q: What is your payment method?

A: L/C, T/T available for the payment. Usually 30% TT as deposit, 70% blanced by TT before shipping



4. Q: What is your quality warranty period?

A: For the complete hydraulic breakers, 6 months-12 months quality warranty period. But quick-wearing

spare parts are not included.



5. Q: How about your heat treatment technology?

 A: Hanyun owns its own leading heat treatment technology, we have a full line of high-end imported heat

treatment line and professional technicians to control heat treatment. Thus breaker cylinders and chisels

processed are anti-wearing, anti-striking, having a long service life
