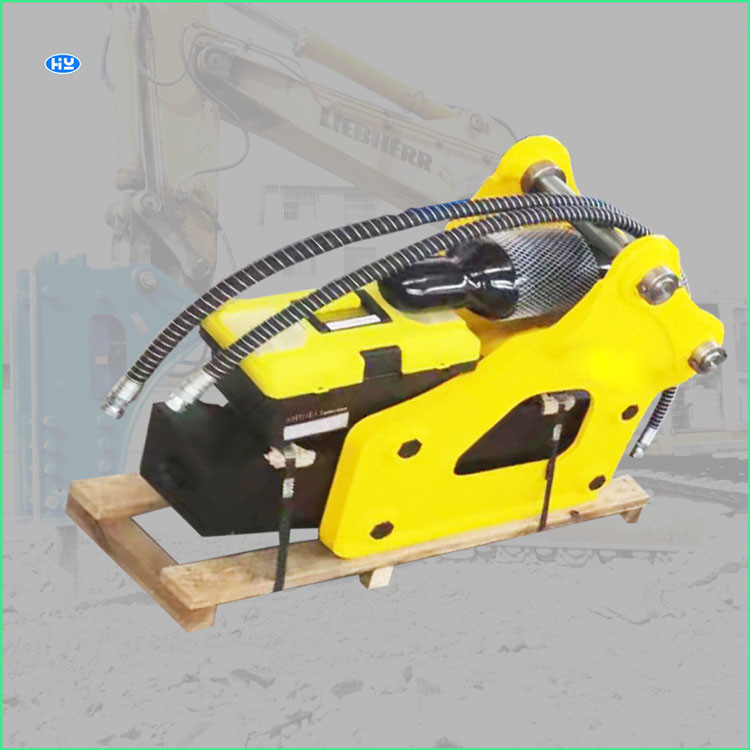

Chisels 135mm Hydraulic Excavator Breaker 350 BPM- 600BPM Rock Drill
  • Chisels 135mm Hydraulic Excavator Breaker 350 BPM- 600BPM Rock Drill
  • Chisels 135mm Hydraulic Excavator Breaker 350 BPM- 600BPM Rock Drill
Place of Origin CHINA
Brand Name HANYUN
Certification Quality certificate
Model Number HY135
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Exported packages
Delivery Time 5-15 working days
Payment Terms L/C, , T/T, D/A, D/P
Supply Ability 5000 sets per year
Product Details
Item Hydraulic Hammer Breaker Chisel Diameter 135mm
Breaker Shell Weight 600 Kgs Applicable Excavator 18-23t
Striking Power 350-600BPM Color Yellow Or Customized Color
Highlight

600BPM Hydraulic Excavator Breaker

,

Chisels 135mm Hydraulic Excavator Breaker

,

350 BPM rock drill breaker excavator
Product Description

Hydraulic Hammer Drill Rods Breaker Chisels 135mm Drilling Tools



(1)  About hydraulic hammer types

Item Applicable excavator weight Hydraulic hammer chisels diameter (popular type)
Light duty 1-18t 45mm,53mm,68mm,75mm,85mm,100mm,120mm
Medium duty 20-28t 135mm,140mm,150mm,150mm
Heavy duty >30t 155mm,165mm,175mm,185mm,195mm,200mm,210mm



(2) Main technical parameters on HY135 hydraulic hammer

Hydraulic Hammer Model HY135 HY140
Hammer shell weight (KGS) 600 800
Total weight(KG) 1663 1700
Size (MM) 1610*530*1280 166*530*1280
Driving oil pressure (KG/CM2) 180-220 190-230
Hydraulic oil flow (L/MIN) 100-150 120-180
Striking frequency (BPM) 350-600 350-500
Soft hose diameter (INCH) 1 1
Drill rod diameter (MM) 135 140
Drill rod weight (KG) 125 130
Applicable carrier weight (T) 18-23 19-25



(3) About packing and transportation

Breaker chisels packing: packed with thick papers, then packed with pallets;

Hydraulic breaker pistons: covered with plastic films, then packed with plywood box;

Hydraulic breaker hammer: packed with anti-colliding plastic film, then packed with pallets

Other hydraulic breaker attachments: covered with exported plywood box

Chisels 135mm Hydraulic Excavator Breaker 350 BPM- 600BPM Rock Drill 0
