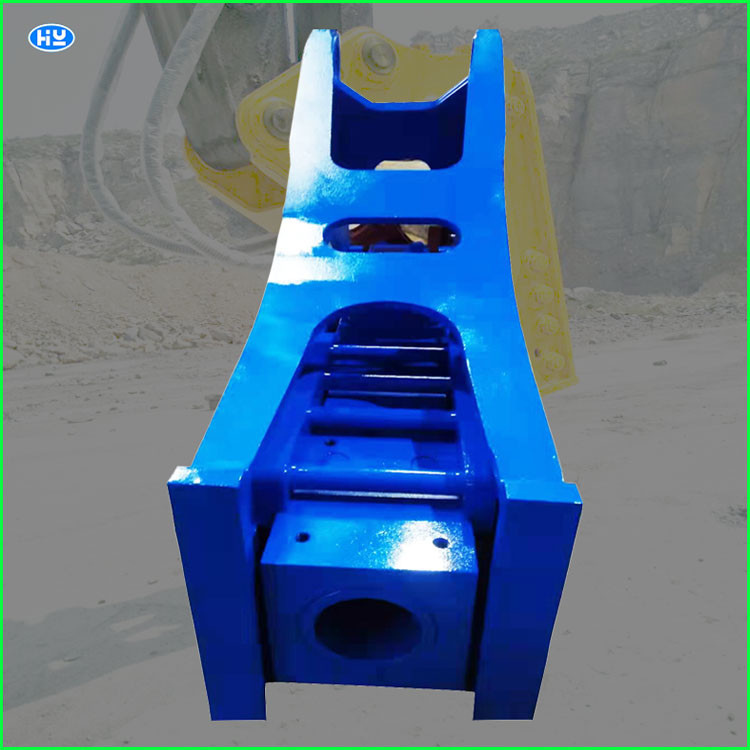

11-16t Backhoe Hydraulic Excavator Breaker Machine Rock Drill Chisel 100mm

11-16t Backhoe Hydraulic Excavator Breaker Machine Rock Drill Chisel 100mm

  • High Light

    11-16t Hydraulic Excavator Breaker

    ,

    Backhoe Hydraulic Excavator Breaker

    ,

    chisel 100mm excavator hydraulic rock breaker

  • Item
    Backhoe Concrete Breaker Machine
  • Breaker Chisel Diameter
    100mm
  • Breaker Weight
    450 Kgs
  • Applicable Excavator
    11-16t
  • Striking Power
    350-700BPM
  • Color
    Blue Or Customized Color
  • Place of Origin
    CHINA
  • Brand Name
    HANYUN
  • Certification
    ISO/CE
  • Model Number
    HY100
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Exported packages
  • Delivery Time
    5-15 working days
  • Payment Terms
    L/C, , T/T, D/A, D/P
  • Supply Ability
    5000 sets per year

11-16t Backhoe Hydraulic Excavator Breaker Machine Rock Drill Chisel 100mm

11-16t Hydraulic Excavator/Loader/Skid Steer/Backhoe Concrete Breaker Machine



(1)  Advantages for backhoe concrete breaker machine

1. Versatile working purpose, suitable for different working fields;

2. High strength raw materials used, anti-wearing, anti-striking and anti-resistance;

3. Advanced heat treatment technology ensures products toughness and strength;

4. Long quality warranty period



(2) Main materials used for backhoe concrete breaker machine

1. For hydraulic demolition hammer shell: high strength steel Q345B

2. For breaker chisel rod pins: 40CRMO/42 CRMO with leading heat treatment technology

3. For hydraulic breaker cylinders: 40CRMO/42CRMO/20CRMO with leading heat treatment technology

4. For hyraulic jack hammer piston: GCr15/9CrV

5. Bolts: high strength bolts



(3) Technical parameters on HY100 backhoe concrete breaker machine

Model: HY100 from Hanyun

Applicable excavator weight: 11-16t

Applicable excavator brand: CAT, VOLVO, HYUNDAI, KOMATSU, KOBELCO, KUBOTA, SANY, DOOSAN,

                                              XCMG, SUNWARD, etc.

Hydraulic excavator breaker size: 1340*430*970mm

Breaker chisels diameter: 100mm (50KGS)

Hydraulic oil pressure: 150-170KG/CM2

Hydraulic oil flow: 80-110L/MIN

Striking frequency: 350-700 BPM

Soft hose: 0.75 inch

Total weight: about 736 KGS
