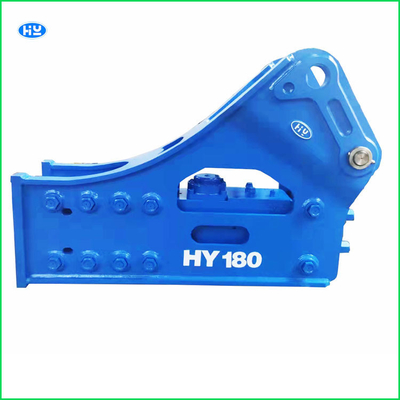

Building Demolition Hydraulic Breaker Hammers
Product Details
| Name | Hydraulic Breaker Hammers Excavator Hammer | Shell Materials | High Strength Steel |
|---|---|---|---|
| Chisels Materials | 40CRMO & 42CRMO | Color | Blue, Red, Yellow And Other Colors |
| Size | Cusom Made | Working Purpose | Stone Breaking Or Building Demolition |
| Excavator Used | Different Models With Different Brands | Usage | Building Demolition |
| High Light | Building Demolition Hydraulic Breaker Hammers,45 tons Hydraulic Breaker Hammers,blue excavator stone breaker |
||
Product Description
Building Demolition Tool Hydraulic Breaker Hammers Excavator Hammer
(1) How to evaluate/control the quality of hydraulic breaker hammers?
1. Raw materials using. For breaker shells, Hanyun uses high strength manganese steel from big factory;
for breaker chisels, 40CRMO/42CRMO are used;
2. Heat treatment technology. With excellent heat treatment technology, the chisels are solid enough to
bear striking loads;
3. Strict welding joints and size inspection. Hanyun measures the materials size strictly and inspect the
welding joints with advanced UT equipment;
4. Worksite testing before mass production
(2) Main Technical Parameters on Hydraulic Breaker Hammers
| Model | HY135 | HY140 | HY155 | HY165 | HY175 | HY185 |
| Total weight (KG) | 1653 | 1740 | 2750 | 2755 | 3580 | 4240 |
| Length (MM) | 2367 | 2414 | 2905 | 3310 | 3816 | 3986 |
| Driving oil pressure (KG) | 160-180 | 160-180 | 170-190 | 250 | 250 | 270 |
| Driving oil volume (L/MIN) | 120-150 | 120-150 | 190-250 | 200-300 | 210-290 | 220-300 |
| Striking frequency(BPM) | 400-490 | 400-490 | 300-400 | 350-450 | 300-450 | 200-300 |
| Rubber hose diameter (INCH) | 1 | 1 | 1.25 | 1.25 | 1.25 | 1.25 |
| Drill rod diameter(MM) | 135 | 140 | 155 | 165 | 175 | 185 |
| Drill rod weight(KG) | 110 | 126 | 195 | 200 | 260 | 300 |
| Applicable vehicle weight (T) | 18-25 | 18-25 | 28-35 | 35-40 | 38-45 | 45-65 |
(3) Main Products from Hanyun
Hanyun is one leading manufacturer of hydraulic hammers for different excavators with various models.
It was founded in Zhengzhou city, China in 2012. For about 10 years,
it has kept being dedicated in the field of design, develop and fabricate different hydraulic breaker hammers
and related spare parts.
Main products of Hanyun as below:
1. Hydraulic breaker hammers;
2. Breaker chisels ;
3. Excavator compactors;
4. Hydraulic pulverizer;
5. Excavator quick hitches;
6. Excavator breaker attachment.
(4) Advantages of Hanyun
- Top 3 output and sales volume for hydraulic hammers and breaker chisels in China;
- High strength alloy steel 40CrMo/42CrMo used, longer service life;
- High-end imported processing equipment like Doosan and powerful hardware facilities realize automated production;
- Excellent heat treatment technology has superior durability.
- Large output, high quality, fast delivery;
- Complete models;
- Perfect 7-person after-sales service team;
- Strict control of raw materials purchasing and processing, implement Ultrasonic Testing before,during and after production.
(5) Worksite Show on Hydraulic Breaker Hammers
(6) Hanyun Family
| Foundation Date | 2012 |
| Factory Address | Zhengzhou city, Henan, China |
| Company Type | Manufacturer + Joint-stock enterprise |
| Annual sales | About USD 30 million |
| Family members | 210 |
