Excavator Hydraulic Breaker Hammer Chisels Tools 1300MM HB20G HB30G

Excavator Hydraulic Breaker Hammer Chisels Tools 1300MM HB20G HB30G

  • High Light

    Excavator Hydraulic Breaker Hammer Chisels

    ,

    HB30G Hydraulic Breaker Hammer Chisels

    ,

    1300MM Hydraulic Breaker Chisels

  • Keyword 1
    Hydraulic Breaker Chisels
  • Keyword 2
    Hydraulic Hammer Chisel Tools
  • Working Equipment
    Excavator Breaker Hammers
  • Diameter
    135MM
  • Length
    1300MM
  • Raw Materials
    42CrMo/40Cr
  • Heat Treatment
    Perfect Heat Treatment
  • Color
    Gold, Black, Yellow And Other Customized Color
  • Model
    HB Model, HB20G/HB30G/HB10G/HB5G
  • Type
    Wedge Type Chisels And Other Customized Type
  • Place of Origin
    China
  • Brand Name
    Hanyun
  • Certification
    CE/ISO9001
  • Model Number
    HB20G/HB30G
  • Minimum Order Quantity
    1 container
  • Price
    Negotiable price
  • Packaging Details
    Exported plywood box or pallets
  • Delivery Time
    10 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200,000 pieces per year

Excavator Hydraulic Breaker Hammer Chisels Tools 1300MM HB20G HB30G

Excavator Hydraulic Breaker Chisels Hydraulic Hammer Chisel Tools HB20G HB30G



(1) How to select one suitable hydraulic breaker chisel?

1. Check model and details on hydraulic breaker hammer, one chisel has to suit hydraulic breaker well,

   then it could work well;

2. Check raw materials of hydraulic hammer chisel tools, reliable factory use 42CrMo/40Cr steel from big

  steel factory, if raw materials from unqualified factory, the quality may be not good;

3. Check factory manufacturing history. Hanyun has been in the field of producing hydraulic breaker chisels

   and hydraulic hammers more than 10 years, products quality could stand the test of time



(2) Look here!

We are one DIRECT MANUFACTURER/DIRECT FACTORY with more than 10 years producing

hydraulic rock breaker chisels and hydraulic breakers





(3) Main Technical Parameters on Excavator Hydraulic Breaker Chisels Hydraulic Hammer Chisel Tools

HB20G HB30G

 Chisel Model

Diameter(mm)

Length

(MM)

Weight

(KGS)

Applicable excavator (T)

HB20G

135

1300

125

18-25

HB30G

150

1400

175

25-35

SB50

100

1000

50

13-15

SB81

140

1400

130

20-24


Model Diameter(MM) Length
(MM)
Weight
(KGS)
Applicable excavator
(T)
HYQG45 45 500 8 1.5-3
HYQG53 53 600 12 3-5
HYQG68 68 700 16 5-7
HYQG75 75 750 22 7-9
HYQG85 85 850 48 9-12
HYQG100 100 1000 50 13-15
HYQG120 120 1200 115 16-19
HYQG135 135 1300 125 19-23
HYQG140 140 1300 130 20-24
HYQG150 150 1500 190 30
HYQG165 165 1500 220 30-36
HYQG175 175 1600 260 36-40
HYQG180 180 1700 280 40
HYQG185 185 1700 300 40-45
HYQG190 190 1700 320 46-50
HYQG195 195 1700 340 48-55
HYQG200 200 1700 370 55-60





(4) How we produce excavator breaker chisels? Production steps are as below:

Excavator Hydraulic Breaker Hammer Chisels Tools 1300MM HB20G HB30G 0Excavator Hydraulic Breaker Hammer Chisels Tools 1300MM HB20G HB30G 1



(5) How we load the hydraulic rock breaker chisels?



As one direct factory, Hanyun could produce high quality hydraulic hammer tool bits chisels with large quantity.

Usually breaker chisels are packed as one pallets after covering anti-colliding films, then all pallets are loaded

into containers.

For order with large quantity, the price will also be lower.

Excavator Hydraulic Breaker Hammer Chisels Tools 1300MM HB20G HB30G 2

Excavator Hydraulic Breaker Hammer Chisels Tools 1300MM HB20G HB30G 3Excavator Hydraulic Breaker Hammer Chisels Tools 1300MM HB20G HB30G 4

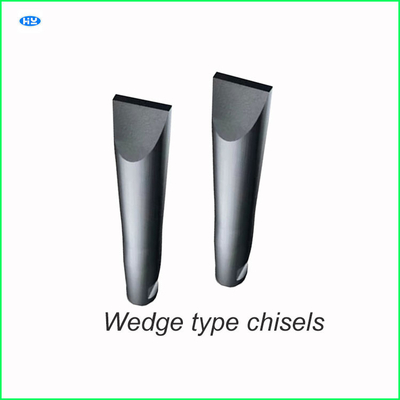

(6) What are popular types for Excavator Hydraulic Breaker Chisels Hydraulic Hammer Chisel Tools?

1. Moil point type chisel

2. Cone type chisel

3. Wedge type chisel

4. Blunt type chisel

5. Shovel type chisel

Excavator Hydraulic Breaker Hammer Chisels Tools 1300MM HB20G HB30G 5
