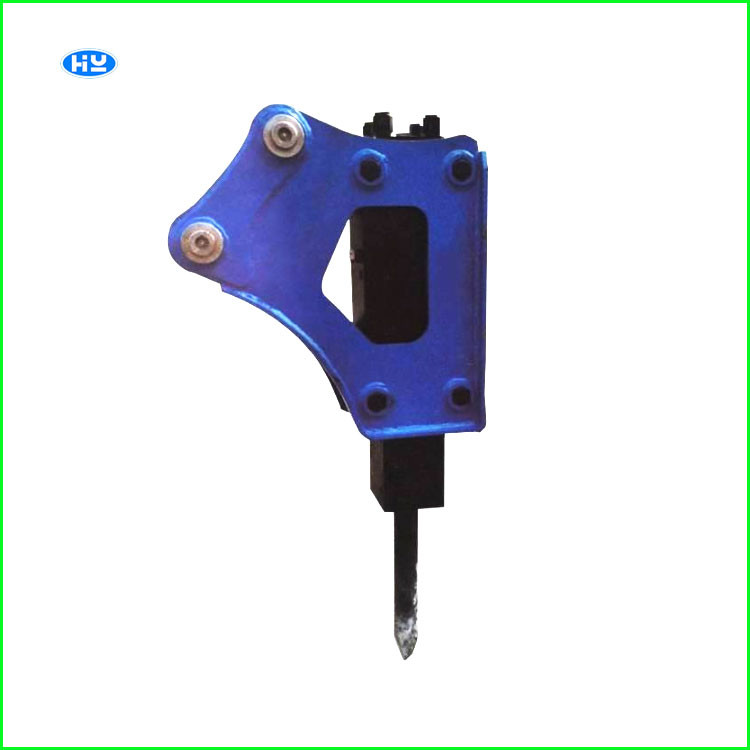

SUNWARD 3 Ton Hydraulic Jack Hammer Breaker 45mm Chisels Excavator Spare Parts

SUNWARD 3 Ton Hydraulic Jack Hammer Breaker 45mm Chisels Excavator Spare Parts

  • High Light

    45mm chisels Hydraulic Jack Hammer

    ,

    SUNWARD Hydraulic Jack Hammer

    ,

    3 Ton hydraulic breaker jack hammer

  • Item
    Excavator Breaking Hammers
  • Chisels Materials
    40CRMO & 42CRMO
  • Breaker Chisels Diameter
    45mm
  • Breaker Chisels Head
    Pointed Head
  • Working Purpose
    Rock Crushing
  • Applicable Excavator
    Sunward SWE Model
  • Size
    Customized Size For Different Excavators
  • Color
    Customized Color According To Customers
  • Place of Origin
    China
  • Brand Name
    HANYUN
  • Model Number
    HY45
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable price
  • Packaging Details
    plywood box or other exported packages
  • Delivery Time
    3-15working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10,000 sets per year

SUNWARD 3 Ton Hydraulic Jack Hammer Breaker 45mm Chisels Excavator Spare Parts

Excavator Spare Parts Excavator Breaking Hammers SUNWARD 3Ton

(1)
Main Technical Parameters on Excavator breaking hammers

Applicable Excavator Model Sunward SWE17/18 Sunward SWE30/40 Sunward SWE50/60/70/80
Breaker shell weight (KGS) 40 60 100
Total weight(KG) 102 140 264
Size (MM) 750*270*480 830*290*570 950*330*700
Driving oil pressure (KG/CM2) 90-120 90-120 110-140
Hydraulic oil flow (L/MIN) 20-40 25-50 40-70
Striking frequency (BPM) 700-1200 600-1200 500-900
Soft hose diameter (INCH) 1/2 1/2 1/2
Drill rod diameter (MM) 45 53 68
Drill rod weight (KG) 8 12 16
Applicable carrier weight (T) 1.2-3.0 2.0-4.0

4-7



(2) About Excavator breaking hammers

Excavator breaking hammers has other alternative names as below:

1. hydraulic breaker

2. hydraulic hammer

3. hydraulic breaker hammer

4. excavator hammer

5. excavator breaker

6. hydraulic jack hammer



(3) What are advantages of Excavator breaking hammers?

Hydraulic jack hammer is used to break stones or rocks in mining projects, it has below features:

1. Simple and compact structure for easy operation and maintenance;

2. Light-weight design for convenient using;

3. Strong striking force;

4. High anti-striking strength;

5. Long service life;

6. High working efficiency


(4) FAQ

1. Q: How do you ship the concrete structures demolition hammers?

A: Usually we will cover demolition hammers with plastic film firstly, then load them into the container.



2. Q: When you will deliver the products after we place one order?

A: Usually 3-10 working days for the standard size. For customized hydraulic hammers, about 15 days



3. Q: What is your payment method?

A: L/C, T/T available for the payment. Usually 30% TT as deposit, 70% blanced by TT before shipping



4. Q: What is your quality warranty period?

A: For the complete hydraulic breakers, 6 months-12 months quality warranty period. But quick-wearing

spare parts are not included.
